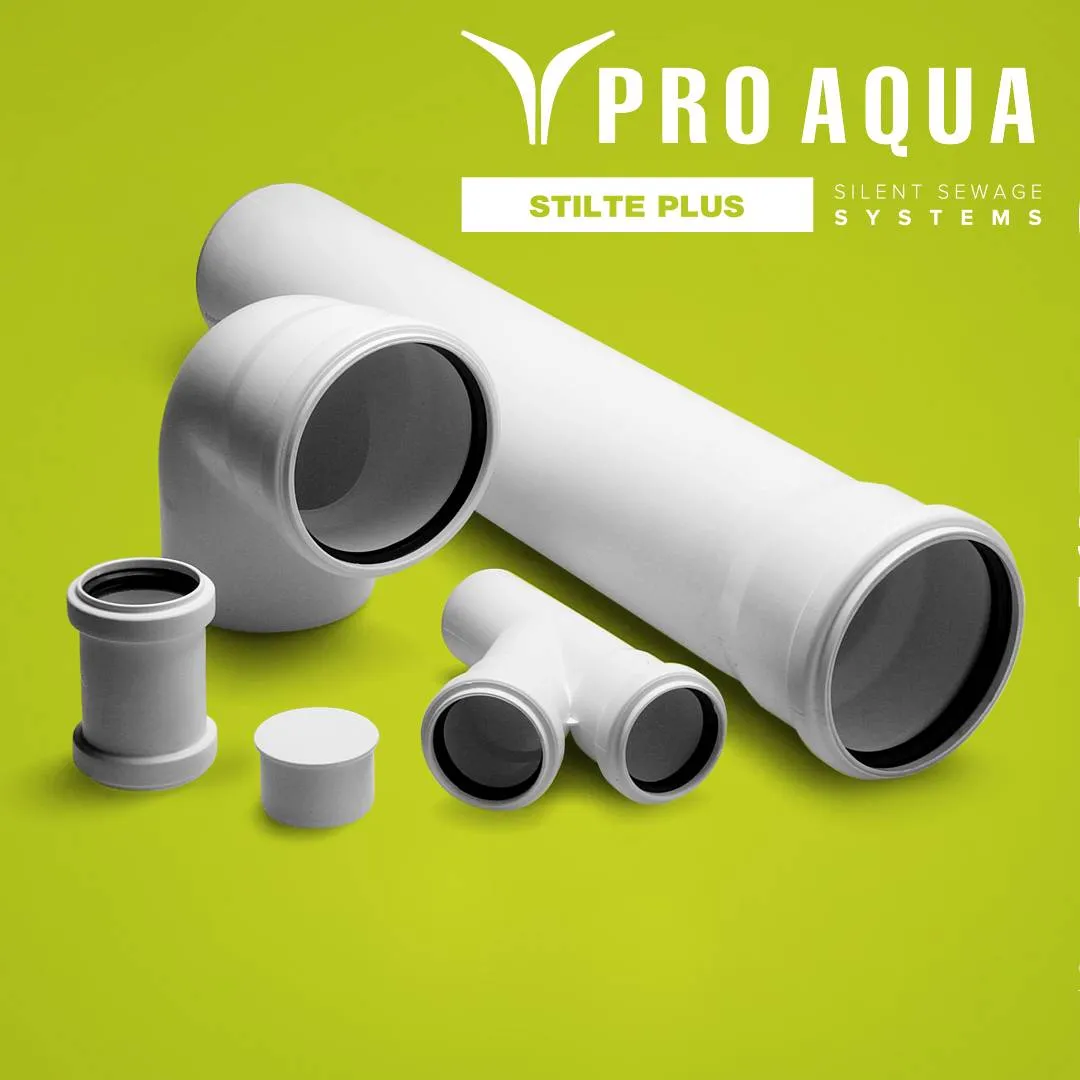

Soundproof pipes for waste water and drainage (STILTE PLUS)
Pumps, Pipes & Plumbing
+ 9
Information
Made from reinforced polypropylene soundproof drainage system PRO AQUA STILTE PLUS shows excellent noise reduction properties
It can be used in building systems of wastewater disposal.
The pipe has a reliable socket connection with EPDM sealing, which provide resistance to internal pressure up to 0.5 bar (0.05 MPa or 5 meters of water)
Wall thickness is 2 times more than ordinary PP sewerage according to EN1452, which provides pipe high impact resistance. Due to ring stiffness up to 16 kN/m2, PRO AQUA STILTE PLUS can be used in underground installations too. The outer diameter of the pipes and fittings of Pro Aqua Stilte Plus corresponds to SML standard sewage sizes and can combine with these pipes through a standard connecting clamp of cast iron pipes.
PIpes and fittings are produced with OD 58, 110, 160, or 200 mm. Pipe length varies from 0,15 to 3 meters. The warranty period is 10 years.
Specification:
- Raw material: mineral reinforced PP
- Density: 1600 kg/m3
- Sealing: one-lip EPDM ring
- Operation temperature: up to 95 degrees;
- Operation pressure: up to 0,5 bar
- Connection method - push-fit socket
- Service life is 50 years.
Key features:
- high corrosion resistance;
- noise level 12 dBA at 2 l/s according to EN 14366;
- smooth inner surface;
- can be fully covered with concrete during installation
- low heat conductivity of material;
- environment friendly - can be recycled.
