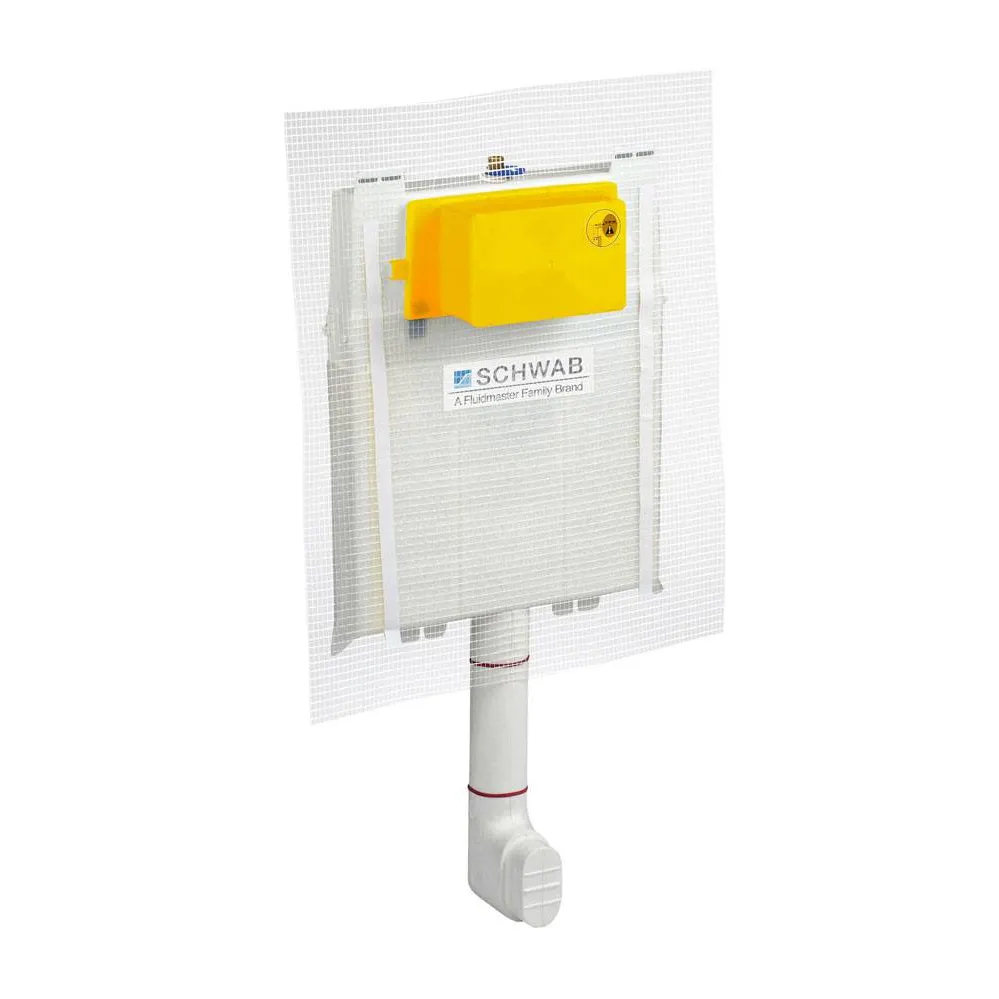

Concealed cistern UP WC 198 Slim
Kitchen, Bathroom & Sanitary Ware
Information
Do you swear by the traditional floor mounted toilets? In this case, our concealed cisterns are the right choice for you. The sophisticated technology of concealed cisterns in combination with the elegance of flushing plates offers the perfect choice for your complete comfort.
Very thin concealed cistern, suitable for areas where small installation depth is required. Enables mechanical and pneumatic flushing activation. A nice selection of flushing plates gives you many possibilities of combinations.
Product features:
- Pre-wall installation or installation into a solid wall
- UP 198 concealed cistern
- Frontal flushing, for dual flushing (3/6 L)
- Flush volume adjustable (large flush 7-9 L, small flush 2-4 L)
- Water connection - top center
- Fully insulated against condensation
- Silent Mechanical Fill valve (Noise class 1 ISO 3822)
- Concealed cistern equipped with pre-installed stop valve – top center
- Water connection 1/2”
- Flush pipe L=300 mm
- Plaster net
- Mounting brackets
- Complete installation and fixing material
- Flushing plate needs to be ordered separately
- Possible installation of flushing plates: CARO, CIRCLE, GENERA, FUTURA,
VIVO DURA, OVATE DUO, DOTS DUO
- EN 14055 - CL1 - 7 - NL I - VR I
