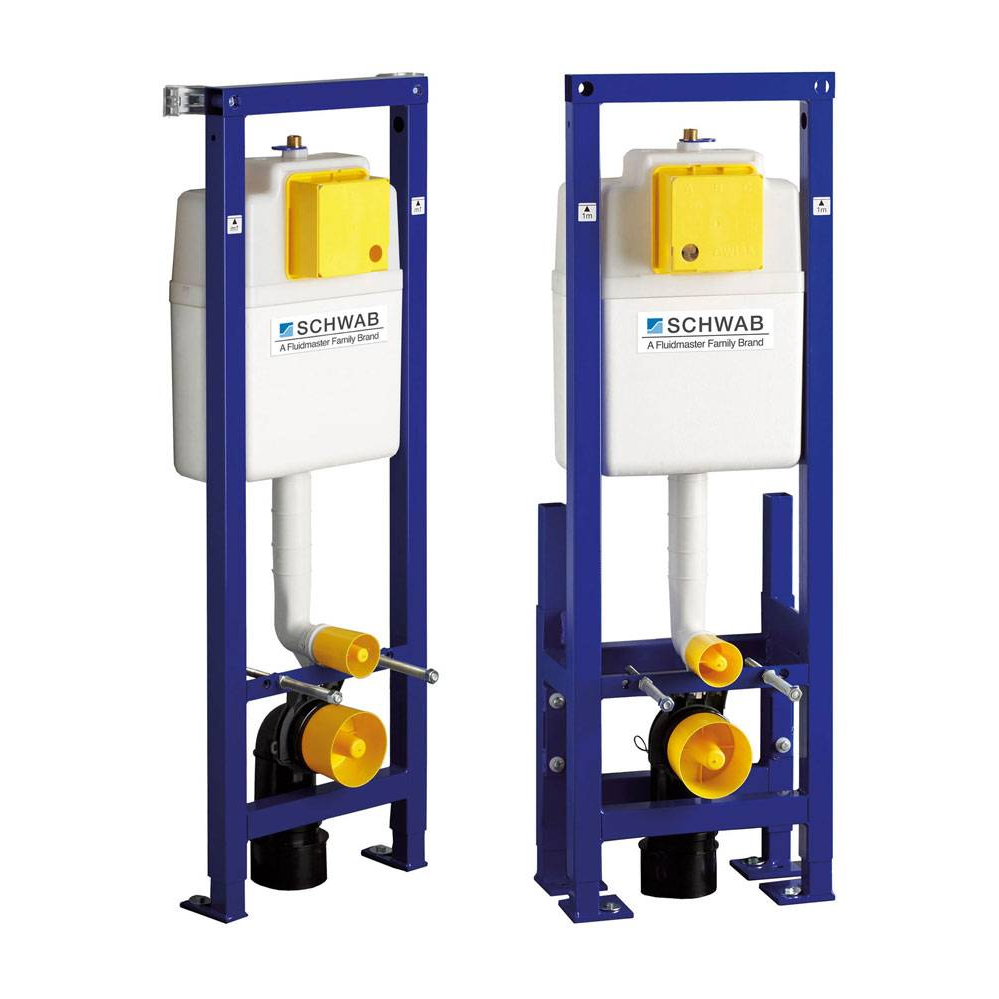

Concealed cistern DUPLO WC 380 Corner +380 SSF
Kitchen, Bathroom & Sanitary Ware
Information
Pre-wall elements for dry construction are the perfect choice for new constructions and renovations of bathrooms and sanitation facilities where the wall hanging toilets are your selection. These products are available in different installation heights and flush activation options. The sophisticated technology of concealed cisterns combined with the elegance of flushing plates offers the perfect choice for your complete comfort.
Extremely narrow concealed cistern (width only 38 cm), which enables the right solution for special requirements - the possibility of changing the height of the toilet bowl, installation of supporting handholds… A wide selection of flushing plates with different flushing activation options (mechanical, pneumatic or electronic) enables endless possibilities of combinations.
Product features:
- Pre-wall corner installation in dry walls (CORNER)
- Standalone element with 4 floor connectors (concrete) (SSF model)
- Supporting, blue powder coated WC element, square profile 40x40 mm
with pre-assembled 380 UP concealed cistern
- Frontal flushing, for start-stop (6 L) or dual flushing (3/6 L)
- Flush volume adjustable between 6 and 7.5 L
- Pre-assembled wall brackets and adjustable feet (0-200 mm)
- Water connection possibility on four positions
- Fully insulated against condensation
- Quiet Hydraulic Fill valve (Noise class 1 ISO 3822)
- Depth adjustable drain elbow (+/-20 mm)
- Concealed cistern equipped with pre-installed stop valve – top middle
- Water connection 1/2”
- PE drain elbow Ø 90 mm with gasket
- Eccentric PE adapter Ø 90 / 110 mm with gasket
- Complete installation and fixing materials
- Flushing plate needs to be ordered separately
- Possible installation of flushing plates: NEA, VERIA, ATENA, ARTE, ITEA
- EN 14055 - CL1 - 6 - NL I - VR I
