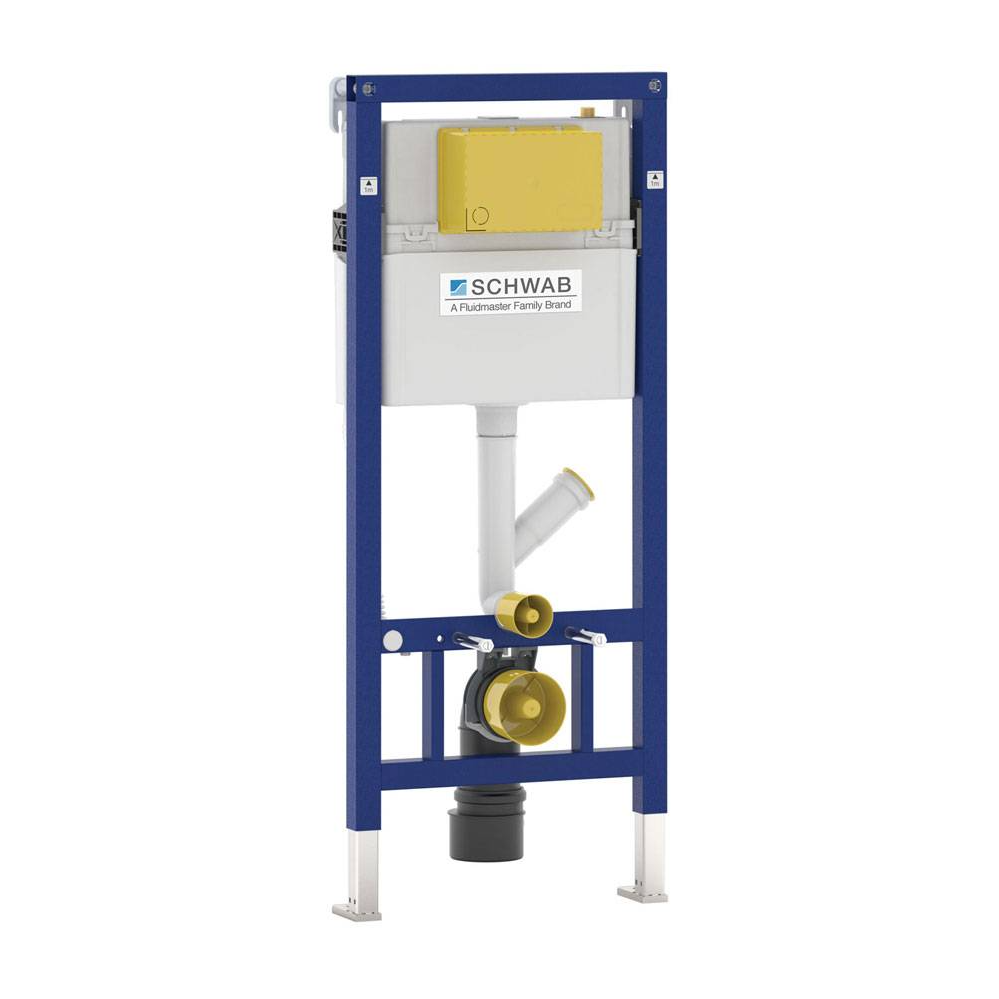

Concealed cistern Duplo WC 189 DWC Premium

Pre-wall elements for dry construction are the perfect choice for new constructions and renovations of bathrooms and sanitation facilities where the wall hanging toilets are your selection. These products are available in different installation heights and flush activation options. The sophisticated technology of concealed cisterns combined with the elegance of flushing plates offers the perfect choice for your complete comfort. Modern concealed cistern of standard dimensions with the possibility of dispelling unpleasant odors and subsequent water connection to the shower toilet seat, allows extremely easy maintenance without tools. A nice selection of flushing plates gives you many possibilities of combinations. Product features: - Supporting, blue powder coated WC element, square profile 40x40 mm with pre-assembled SCHWAB 189 UP concealed cistern - Frontal flushing, for start-stop (6 L) or dual flushing (3/6 L) - Flush volume adjustable (large flush 5/6/7 L, small flush 3/4 L) - Pre-assembled wall brackets and adjustable feet (0-200 mm) - Water connection possibility on four positions - Fully insulated against condensation - Quiet Mechanical Fill valve (Noise class 1 ISO 3822) - Pre-installed force bearing - Sound decoupled to DIN 4109 - For the connection of shower-WCs - Flushing pipe with connection for air extraction Ø 50 mm - Support legs equipped with brake for easier installation, rotating plate ( 90°) - Depth adjustable drain elbow (+/-20 mm) - Concealed cistern equipped with pre-installed stop valve – top right - Water connection 1/2” - Pipe for the water supply connection of shower WC - Electrical box loose - PE drain elbow Ø 90 mm with a gasket - PE adapter Ø 90 / 110 mm with a gasket - Complete installation and fixing material - Flushing plate needs to be ordered separately - Possible installation of flushing plates: CARO, CIRCLE, GENERA, FUTURA, VIVO, DURA, OVATE DUO, DOTS DUO - EN 14055 - CL1 - 6 - NL I - VR I
