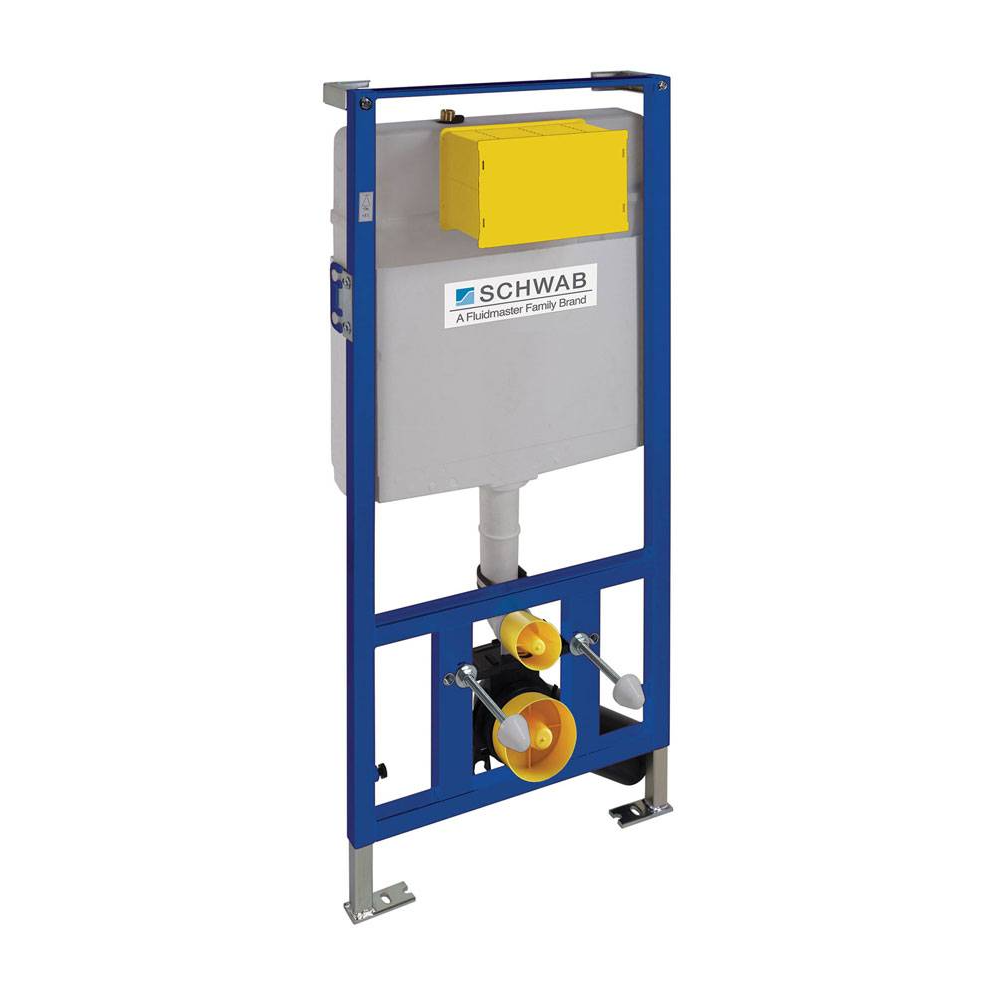

Concealed cistern Duplo WC 199
Kitchen, Bathroom & Sanitary Ware
Information
Pre-wall elements for dry construction are the perfect choice for new constructions and renovations of bathrooms and sanitation facilities where the wall hanging toilets are your selection. These products are available in different installation heights and flush activation options. The sophisticated technology of concealed cisterns combined with the elegance of flushing plates offers the perfect choice for your complete comfort.
Extremely thin concealed cistern, suitable for areas where small installation depth is required. A nice selection of flushing plates gives you many possibilities of combinations.
Product features:
- Installation in prefabricated walls, pre-wall installation in dry walls,
universal installation into solid walls
- Supporting, blue powder coated WC element, square profile 40x30 mm
with pre-assembled SCHWAB 199 UP concealed cistern
- Frontal flushing, for dual flushing (3/6 L)
- Flush volume adjustable (large flush 4.5-9 L, small flush 2.5-4.5 L)
- Pre-assembled wall brackets and adjustable feet (0-200 mm)
- Water connection - top center
- Fully insulated against condensation
- Quiet Hydraulic Fill valve (Noise class 1 ISO 3822)
- Depth adjustable drain elbow (+/-20 mm)
- Concealed cistern equipped with pre-installed stop valve – top center
- Water connection 1/2”
- PE drain elbow Ø 90 mm with seal
- PE adapter Ø 90 / 110 mm with seal
- Complete installation and fixing material
- Flushing plate needs to be ordered separately
- Possible installation of flushing plates: MAGNUS, METIS, VENTUS, VELA,
PLUTO
- EN 14055 - CL1 - 6 - NL I - VR I
